FFT GYRO 600

FFT GYRO 600 PRO

For bigger and heavier drones, with less aerodynamic interference and with the power of robotics.

FFT GYRO series 600 PRO

The new FFT GYRO 600 PRO can test bigger and heavier drones, with less aerodynamic interference and with the power of robotics, so you can automate your tests and put to the limit your multi-rotor UAV. The series 600 has been designed specially for medium to medium-large size multi-rotors. The system is ideal for: - Integrate UAV technology into a custom application for your clients. - Autonomous Vehicle company projects. - Develop and implement new concepts, mechanical designs, electronics and controllers. - Build a real scale prototype and test a new invention. Ask for the Series 600 or a custom build.

Request a Demo Get a Quote

Overview

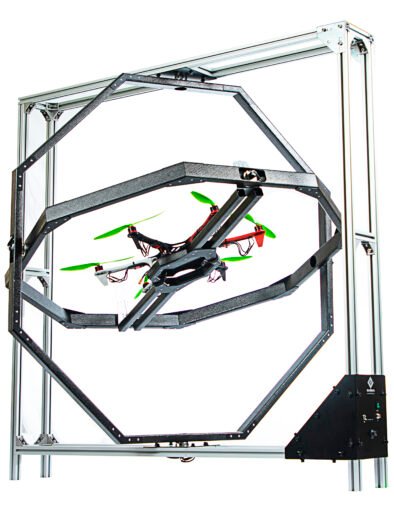

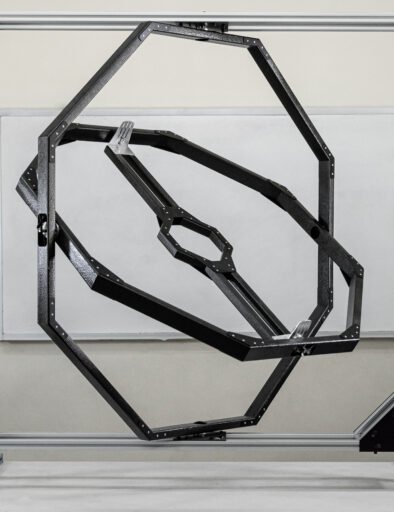

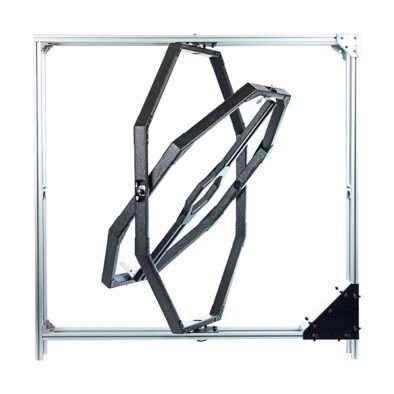

The system is a platform with 3 DOF. A multi-rotor can be attached to a base, which can hold different types and sizes of UAVs and align the geometric center to the center of rotation of the FFT GYRO, letting the vehicle move about it’s real geometric center, and not eccentrically. The structure is designed to allow free rotation about the main axes. The gimbals are equipped with slip rings, so there is no limitation in the rotation of the parts and the electrical connections. The system has three encoders and DC motors (optional). To measure the true roll, pitch and yaw angles of the drone, high-resolution magnetic absolute multi-turn encoders are used. And the DC motors can simulate external forces as disturbances, to perform validations of the robustness for the control laws, or to automate the calibration or validation phase. The gimbals are made of high-quality light and strong material, to reduce the inertia that might be added to the system and maintain the properties of a rigid structure.

Applications

Test and validate novel control algorithms

Implementation of algorithms in real drones

Secure first UAV pilot training phase

Easier onboard sensors calibration

Engineering training laboratory practices

Pro-pilot training and performance review

See It In Action

Made For Researchers & Developers

Designed to implement novel control algorithms, test and validate them efficiently.

_IMG_9566
_IMG_9560
_IMG_9556
_IMG_9550
_IMG_9594
_IMG_9631
_IMG_9645
_IMG_9762
_IMG_9717
_IMG_9706
Previous
Next
Safe collision-free environment

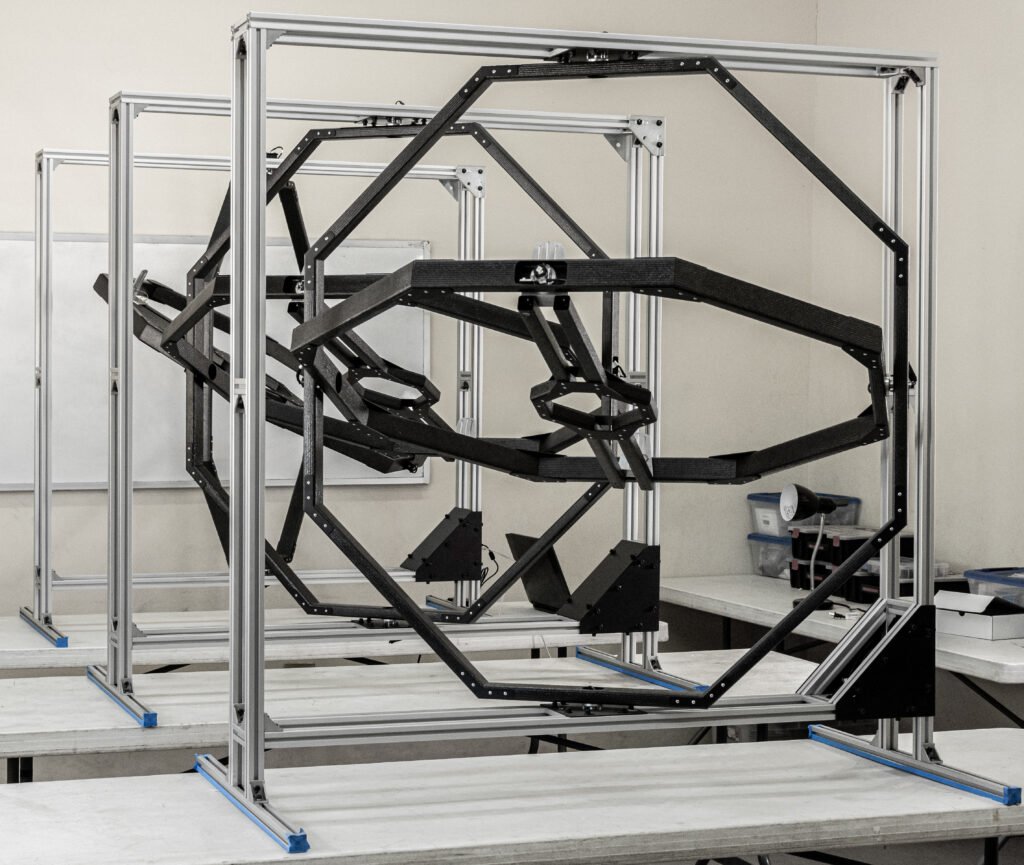

Different types of drones can be attached to perform flight tests safely. Tune your orientation controller before an accident occurs. You can install this in a lab, a workshop to perform the test that you need to finish your projects.

Angular position measurement

High-resolution magnetic encoders to measure roll, pitch and yaw angles with high precision and no drift at all. Slip-rings allows absolute free rotation in the 3 DOF. Also, the encoders can be replaced with motors to simulate external forces.

High quality materials and electronics

Light and strong materials like aluminum alloys and carbon fiber, reducing extra weight to the vehicle. The system can be connected to MATLAB/ Simulink or any other platform, we provide you tools and support.

Product Details

  • Compatible with different types of multi-rotors, and sizes, from 450mm to 600mm rotor to rotor distance, or up to 1000 mm outer diameter. For bigger drones ask for a custom build.
  • Three degrees of freedom about the main axes, roll, pitch, and yaw angles.
  • Slip rings that allow free rotation about any of the Euler angles.
  • High-resolution magnetic absolute encoders, with multiple turns.
  • Mechanically balanced design, reducing any disturbance in the rotation dynamics.
  • High-quality materials like aluminum alloy or carbon fiber parts, strong and light to minimize extra weight and inertia added to the vehicle dynamics.
  • Sensing and control operation from MATLAB / Simulink or its own SDK.
  • The motors can be driven by current or voltage, so torque, rotation speed, or angular position control could be implemented.
  • Fully documented systems models and parameters.
  • Robust and heavy-duty machined components.
  • External aluminum frame, that can be customizable.

Dimensions – L x W x H133 cm x 133 cm x 144 cm (unfold).
Device mass21 Kg.
Encoder resolution0.0879° (12-bits).
Motor power15.3 Kg × cm.
Plate (roll) mass and inertia850 g – 3.58E+06 g-mm2 (about roll axis).
Inner Gimbal (pitch) mass and inertia1450 g – 2.05E+08 g-mm2 (about pitch axis).
Outer Gimbal (yaw) mass and inertia1550 g – 2.60E+08 g-mm2 (about yaw axis).
Roll, pitch, and yaw range360° (multi-turn).
Multi-rotor compatible sizesFrom450mm to 600mm rotor to rotor distance, or up to 950 mm outer diameter.
Power specs12 V, 5 A, 120W.

Communication protocols

USB2.0, serial port, 100 Hz.
Download Datasheet
Order Now
