FFT GYRO series 450

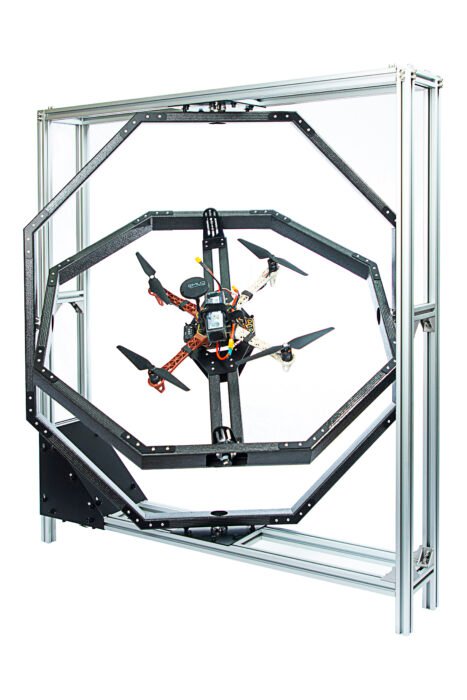

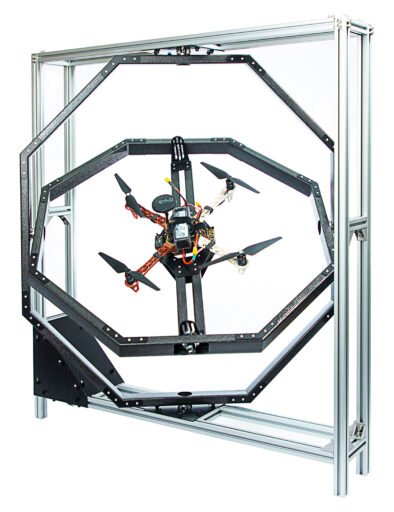

The FFT GYRO series 450 has been designed specially for small to medium size multi-rotors, based on the famous 450 quadcopter frame. The system is ideal for: - Train AI flight controllers. - Tune non-linear control parameters - Robotics and Autonomous Vehicle postgraduate projects. - Develop and implement new concepts, mechanical designs, electronics and controllers. - Build a scale prototype and test a new invention. - Improve your drone dynamics to win a robotics challenge.
Applications
Test and validate novel control algorithms
Implementation of algorithms in real drones
Secure first UAV pilot training phase
Easier onboard sensors calibration
Engineering training laboratory practices
Pro-pilot training and performance review
Made For Researchers & Developers
Designed to implement novel control algorithms, test and validate them efficiently.













Safe collision-free environment
Different types of drones can be attached to perform flight test safely. Tune your orientation controller before an accident occurs. You can install this in a classroom to teach students the use and control of UAVs.
Angular position measurement
High-resolution magnetic encoders to measure roll, pitch and yaw angles with high precision and no drift at all. Slip-rings allows absolute free rotation in the 3 DOF. Also, the encoders can be replaced with motors to simulate external forces.
High quality materials and electronics
Light and strong carbon fiber, reducing extra weight to the vehicle. The system can be connected to MATLAB/ Simulink or any other platform, we provide you tools and support.
Product Details

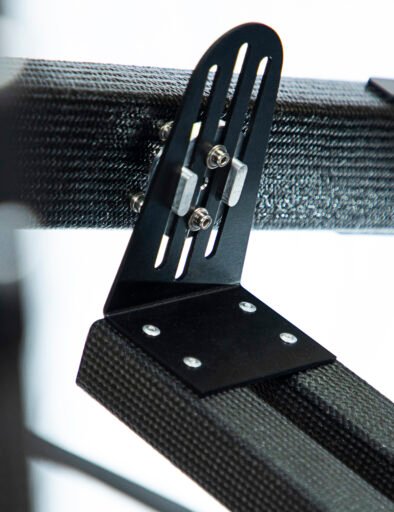

- Compatible with different types of multi-rotors, and sizes, from 250mm to 450mm rotor to rotor distance, or up to 750 mm outer diameter.

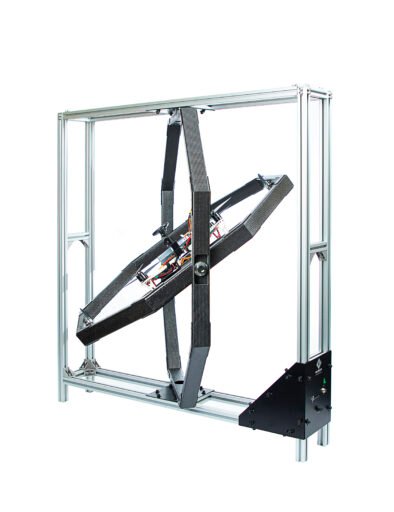

- Three degrees of freedom about the main axes, roll, pitch, and yaw angles.
- Slip rings that allow free rotation about any of the Euler angles.
- High-resolution magnetic absolute encoders, with multiple turns.
- Mechanically balanced design, reducing any disturbance in the rotation dynamics.
- High-quality materials like aluminum alloy or carbon fiber parts, strong and light to minimize extra weight and inertia added to the vehicle dynamics.
- Sensing and control operation from MATLAB / Simulink.
- The motors can be driven by current or voltage, so torque, rotation speed, or angular position control could be implemented.
- Fully documented systems models and parameters.
- Robust and heavy-duty machined components.
- External aluminum frame, that can be customizable.
Dimensions – L x W x H | 113 cm x 113 cm x 124 cm (unfold). | |
Device mass | 19 Kg. | |
Encoder resolution | 0.0879° (12-bits). | |
Motor power | 15.3 Kg × cm. | |
Plate (roll) mass and inertia | 660 g – 1.83E+06 g-mm2 (about roll axis). | |
Inner Gimbal (pitch) mass and inertia | 1250 g – 1.17E+08 g-mm2 (about pitch axis). | |
Outer Gimbal (yaw) mass and inertia | 1350 g – 1.56E+08 g-mm2 (about yaw axis). | |
Roll, pitch, and yaw range | 360° (multi-turn). | |
Multi-rotor compatible sizes | From 250mm to 450mm rotor to rotor distance, or up to 750 mm outer diameter. | |
Power specs | 12 V, 5 A, 120W. | |
Communication protocols | USB2.0, serial port, 100 Hz. |
